Android WiFiAnalyzer App

Team Compute android
1

WiFiAnalyzer

The WiFiAnalyzer mobile app enables collection of a lot of environmental data using the sensors on your phone.

You should run the WiFiAnalyzer app for about 60 seconds so it can collect enough data (but NOT more than 90 seconds as that will be too much data) to create a survey file as output.

You can then import the resulting survey file into your Community Cluster location pin documenting the survey event at that location.

1. Usage

  1. Install App
  2. Collect Data
  3. Import Data

2. iOS

This app is for Android, for iOS please use:

2

Install App

1. Installation

The WiFiAnalyzer mobile app can be downloaded from

Once installed the app should appear on the Home Screen.

wifianalyzer
wifianalyzer450×1000 386 KB

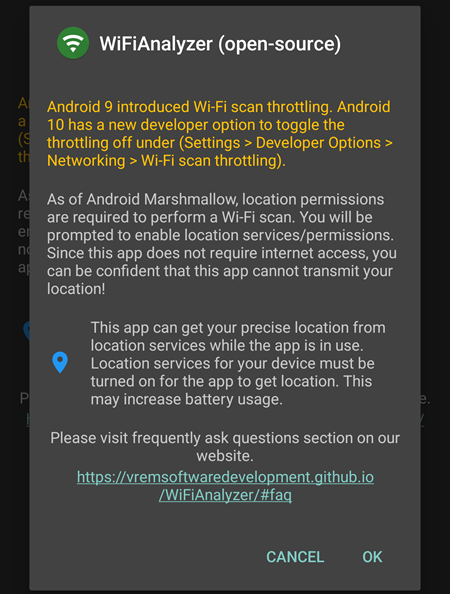

2. Setting

When opening the app for the first time, a pop-up window may appear. Select OK.

wifi_throttling
wifi_throttling450×594 99.1 KB

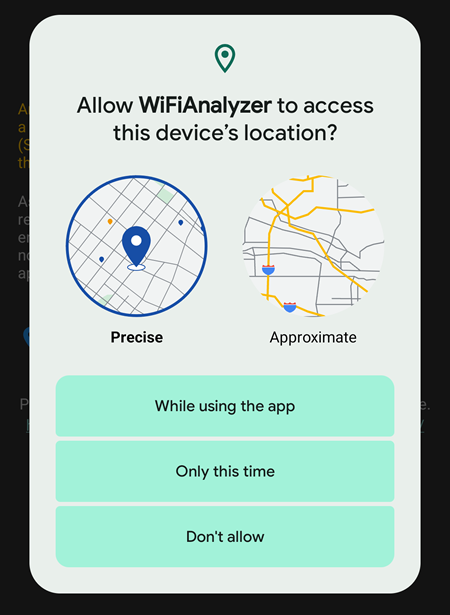

3. Allow Permission

If prompted, please allow all permissions.

Select While using the app for location.

location_permission
location_permission450×615 70.6 KB

3

Collect Data

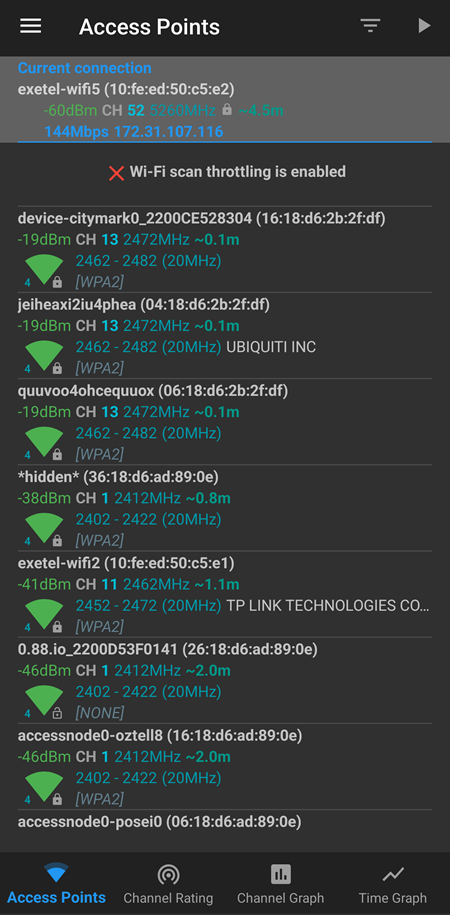

Click on the play_button button located at the top right hand corner to start.

loc_wifi_android
loc_wifi_android450×915 156 KB

To stop the scanning, click on the pause_button button.

Save the WiFi signal detected to a file by clicking on the menu_button button, select Export and choose the storage location where the file is to be saved, whether locally, e.g: the Download folder or remotely, e.g: Google Drive.

4

Import Data

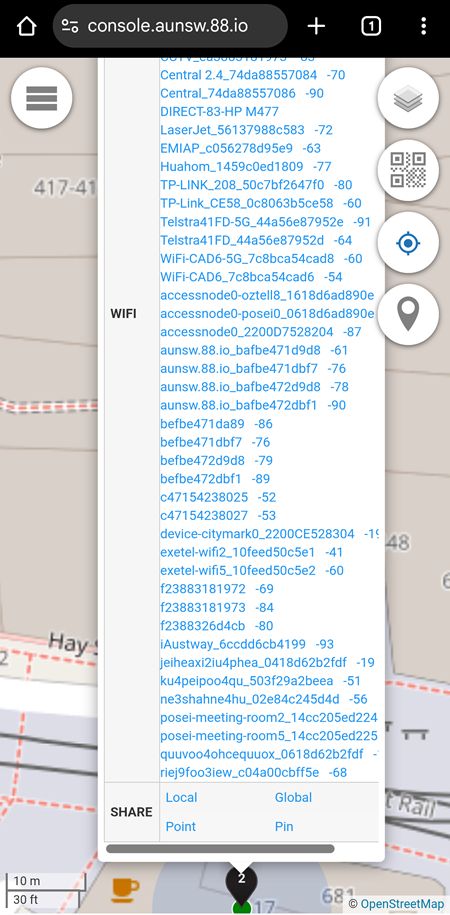

Click on the location pin, select Attach -> Survey and browse to the location where the file is stored.

If successful, the location pin will have the WiFi detected displayed in the format of "WiFi SSID_MAC Address" or "WiFi SSID_Activity Marker" and followed by the RSSI signal strength.

In the example below:

  • accessnode0_2200D7528204 -87, where accessnode0 is the WiFI SSID followed by 2200D7528204 which is the Activity Marker with RSSI of -87
  • exetel-wifi2_10feed50c5ei -41, where exetel-wifi2 is the WiFi SSID followed by 10feed50c5ei which is the MAC Address with RSSI of -41

loc_wifi_android
loc_wifi_android450×915 193 KB

For Community Area Alias only

If Survey is selected in the Publish Pins menu, the post will also be displayed.

{
	"subject" : "#loc_wifi",
	"pin" : "#pin_hv7bkjsv9wyvlfvijpfsidzoe0vlmv9nhrycdmzr",
	"alias" : "#alias_bjybliz7apoka4i9uomb5tmaxe9q0bmz7fboda8j",
	"blockid" : "#bi_daq6cyprpqeohnya9c9nj6ommdzg8t92ktnvpd8j",

	"date" : "#dt_20250603",

	"wifi" : ["0.88.io_2200D53F0141 -46",
		"1618d6ad894d -83",
		"2618d62b2fdf -18",
		"3618d6ad890e -38",
		"Bethany-Guest_ee3883181972 -69",
		"Bethany-Guest_ee3883181973 -83",
		"Bethany-Guest_ee388326d4cb -82",
		"Bethany_e43883181972 -73",
		"Bethany_e43883181973 -83",
		"Bethany_e4388326d4cb -82",
		"CCTV_ea3883181972 -73",
		"CCTV_ea3883181973 -83",
		"Central 2.4_74da88557084 -70",
		"Central_74da88557086 -90",
		"DIRECT-83-HP M477 LaserJet_56137988c583 -72",
		"EMIAP_c056278d95e9 -63",
		"Huahom_1459c0ed1809 -77",
		"TP-LINK_208_50c7bf2647f0 -80",
		"TP-Link_CE58_0c8063b5ce58 -60",
		"Telstra41FD-5G_44a56e87952e -91",
		"Telstra41FD_44a56e87952d -64",
		"WiFi-CAD6-5G_7c8bca54cad8 -60",
		"WiFi-CAD6_7c8bca54cad6 -54",
		"accessnode0-oztell8_1618d6ad890e -46",
		"accessnode0-posei0_0618d6ad890e -46",
		"accessnode0_2200D7528204 -87",
		"aunsw.88.io_bafbe471d9d8 -61",
		"aunsw.88.io_bafbe471dbf7 -76",
		"aunsw.88.io_bafbe472d9d8 -78",
		"aunsw.88.io_bafbe472dbf1 -90",
		"befbe471da89 -86",
		"befbe471dbf7 -76",
		"befbe472d9d8 -79",
		"befbe472dbf1 -89",
		"c47154238025 -52",
		"c47154238027 -53",
		"device-citymark0_2200CE528304 -19",
		"exetel-wifi2_10feed50c5e1 -41",
		"exetel-wifi5_10feed50c5e2 -60",
		"f23883181972 -69",
		"f23883181973 -84",
		"f2388326d4cb -80",
		"iAustway_6ccdd6cb4199 -93",
		"jeiheaxi2iu4phea_0418d62b2fdf -19",
		"ku4peipoo4qu_503f29a2beea -51",
		"ne3shahne4hu_02e84c245d4d -56",
		"posei-meeting-room2_14cc205ed224 -68",
		"posei-meeting-room5_14cc205ed225 -81",
		"quuvoo4ohcequuox_0618d62b2fdf -19",
		"riej9foo3iew_c04a00cbff5e -68"],

	"srcname" : "console.aunsw.88.io",
	"srcarea" : "#a_0033880_151204",
	"srctime" : "#t_1748914200",
	"srctx" : "#tx_wsgivghagtwxjuk11kidjgkpdib3xbwfosxpbg9e",
	"srcsign" : "PsB5x9bwKIkUCU8eh0GvwMdN9dUo7E2B0dOYHjrWJm94HcHLHMTLbmLB0GBkg3-APgYGgkHWF06xr8YAya7lDw"
}
