HP T630

2. Team AI Devices 2.2 Alias Station campus station
1

HP T630

HP T630 Thin Client AMD GX-420GI

https://h20195.www2.hp.com/v2/getpdf.aspx/c04984422.pdf

If you can find this model at a reasonable price. - getit!
It is one of the few Thin Clients that:

  1. supports TWO M.2 SATA SSD
  2. works with 64GB RAM

Prices (including tax and shipping)

Date Price RAM/SSD/Radio
2026-04-30 AU$65 4GB / 32GB / None
2026-05-29 AU$86 4GB / 128GB / Yes
2026-05-29 AU$99 8GB / 32GB / None
2

Hardware Watchdog

The AMD Embedded G-Series GX-420GI processor relies on the SP5100 TCO Southbridge/chipset for its hardware watchdog capabilities. It automatically reboots your device if the system hangs and the OS stops periodically "petting" the timer. [1, 2, 3, 4, 5]

Key Details & Configuration

  • Kernel Driver: In Linux environments, the driver used to interact with this hardware is sp5100_tco.
  • BIOS Settings: The watchdog can often be enabled or disabled via the BIOS/UEFI. Look under the H/W Monitor or Advanced tabs.
  • Heartbeat: The default timeout is typically set to 60 seconds, which can be configured via module parameters. [1, 2, 3, 4]

Common Troubleshooting Scenarios

  • "Watchdog hardware is disabled" log: You may see this standard informational message in your journalctl on desktop or workstation distros. If you are not running a headless server or router and prefer to suppress the message, you can blacklist the module by creating a configuration file in /etc/modprobe.d/. [1, 2]
  • Reboot stalls: Sometimes the watchdog fails to stop during a clean system shutdown or restart. This can be resolved by adding nowatchdog to your kernel boot parameters. [1]
  • IPMI Dependency: On older motherboards, full functionality may be tied to IPMI-compliant hardware. [1]

To manage hardware watchdogs (such as those in Router OS, Linux, or FreeNAS), you can utilize system daemon tools like watchdogd to monitor CPU/disk health and trigger resets. [1, 2]

Armbian

To configure and enable the GX-420GI’s native hardware watchdog on Armbian, follow this quick setup guide to verify your kernel driver, configure the service daemon, and handle system timeouts.

1. Load the Hardware Module

Armbian needs the specific AMD Southbridge chipset driver initialized to map /dev/watchdog. [1, 2]

  1. Force-load the module immediately:
   sudo modprobe sp5100_tco
  1. Make it permanent by appending it to your modules configuration file:
   echo "sp5100_tco" | sudo tee -a /etc/modules
  1. Confirm that the kernel successfully registered the hardware nodes:
   ls -l /dev/watchdog*

(You should see /dev/watchdog and /dev/watchdog0 in the output). [1, 3]

2. Install and Configure the Watchdog Daemon

The software daemon handles the regular "petting" (heartbeat checks). [4]

  1. Update packages and install the utility:
   sudo apt update && sudo apt install watchdog -y
  1. Open the primary daemon settings profile:
   sudo nano /etc/watchdog.conf
  1. Locate and uncomment (or add) the following directive line:
   watchdog-device = /dev/watchdog
  1. (Optional) Set target constraints such as maximum memory usage limits or an upstream network ping = 1.1.1.1 to trigger safety reboots if internet connection drops completely. Save and exit (Ctrl+O, Enter, Ctrl+X). [1, 5]

3. Update Service Defaults

Armbian's underlying Debian/Ubuntu init system manages the daemon through service variables. [6, 7]

  1. Open the initialization default configurations file:
 sudo nano /etc/default/watchdog
  1. Change the activation values to ensure the module fires at system startup:
   run_watchdog=1
   watchdog_module="sp5100_tco"
  1. Save changes, reload the core system processes, and start up your hardware monitor:
   sudo systemctl daemon-reload
   sudo systemctl enable --now watchdog

[1]

4. Safety Warning for Thin Clients (HP t530 / GX-420GI)

If your Armbian system displays "watchdog did not stop!" messages or hangs indefinitely during manual reboots, it means the processor is cycling power faster than the module can disengage. You can fix this by adding reboot=bios or nowatchdog directly into your global boot flags (/etc/default/grub or your Armbian active boot script depending on if you are utilizing GRUB or U-Boot). [8, 9]
Would you like to know how to test your setup safely using a fork bomb or kernel panic command to see if the hardware resets properly when locked up?

[1] https://docs.jethome.com
[2] https://www.kernelconfig.io
[3] https://www.digitalocean.com
[4] https://www.youtube.com
[5] https://forum.armbian.com
[6] https://forum.armbian.com
[7] https://invgate.com
[8] https://www.baeldung.com
[9] https://www.reddit.com

3

Extra Ethernet Port

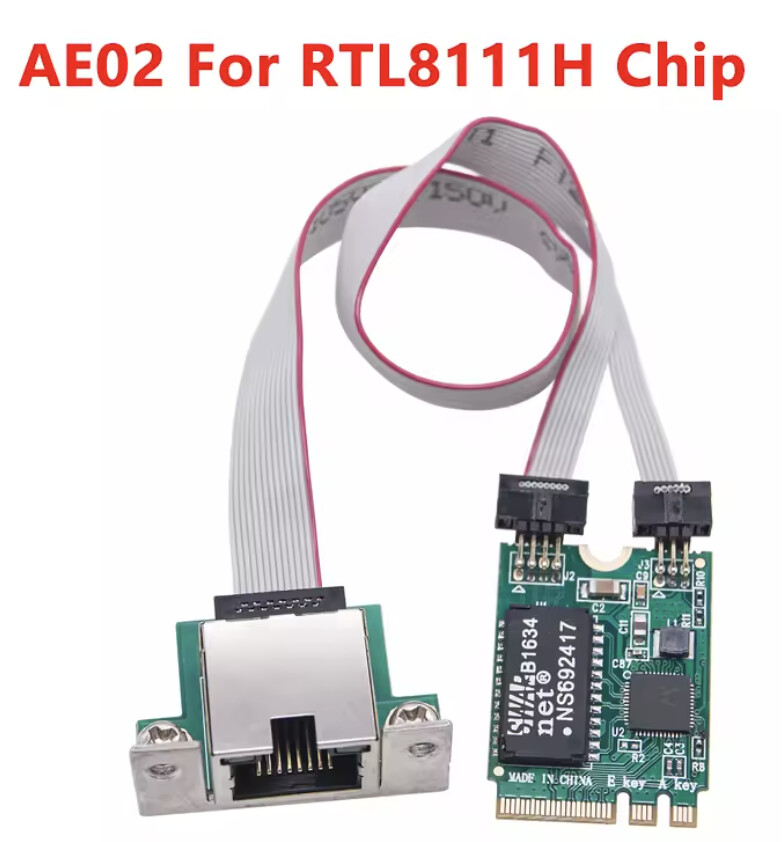

The M.2 E-key slot designed for WiFi can be used to add an extra wired ethernet port.

ethernet
ethernet784×842 96.6 KB
