Any data collected by you under Private Alias do NOT leave your phone, in fact most Private Alias functions remain available even when your phone has NO internet connection.
Creating Private Aliases
Create your own Private Alias with just ONE CLICK ... that will install the Personal Console software on your phone.
All Personal Consoles come an unqiue randomly generated Private Alias, so you can start using the console to collect data for your own consumption under that private alias immediately.
Using Private Aliases
Unlike the other dynamic aliases, private alias is NOT designed to share data.
An use case of Private Alias is during a pandemic (e.g. COVID), you do NOT want to share your location in real time for contact tracing, but you do want to keep a detailed track where you have been. When the government announces COVID cases you can see whether you have been potentially infected.
Storing Private Aliases
You can create multiple private aliases to collect different data, you can also export them from the console or import them into the console at anytime.
Exported aliases are stored encrypted on your phone, which you can back up using your standard mobile phone backup routine (like photos on your phone).

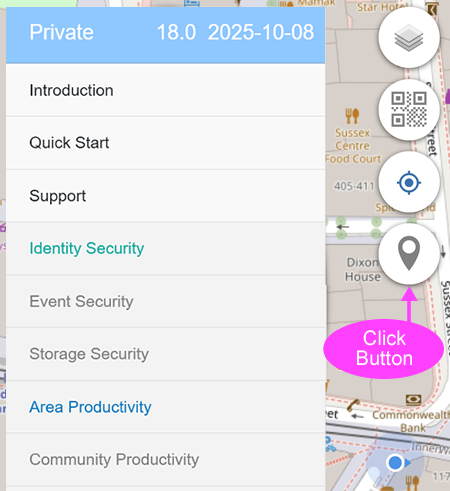

SECOND, click on the "Web Pin" button on the resulting menu (as shown above) to use the Web Browser's internal geolocation value as your current location.
The introduction menu takes you to https://computeowner.com website which has detailed information about the advantages of Compute Ownership. Once the Introduction menu has been clicked, it will no longer be shown on the Console menu. Simply use the browser and type https://computeowner.com to view it again.
Quick Start
The Quick start menu takes you to Personal Console which explains how anyone can easily use it. Once the Quick Start menu has been clicked, it will no longer be shown on the Console menu. Simply use the browser and type Personal Console to view it again.
Support
The Support menu takes you to OZtralia which explains how to get support. Once the Support menu has been clicked, it will no longer be shown on the Console menu. Simply use the browser and type OZtralia to view it again.
Dynamic Alias
There are 7 sub-menus available:
Introduction
Team Compute
Alias List
Alias Applications
Alias Verification
Alias Wallet
Anonymous Interaction
Introduction
The introduction takes you to Dynamic Alias which explains in details what Dynamic Alias is.
Team Compute
Three sets of Team Compute are available and they all have identical submenus. Team cluster defines the Team Compute used and by default, Team A is the active cluster in use.
The next level of alias after the Private Alias is Area Alias which can be upgraded by ringing +61 138813. Clicking the web link in the SMS sent will complete the Area Alias upgrade.
All aliases listed on Dynamic Alias -> Alias List -> Alias Management can be exported (saved) so in case the browser's cache is cleared or using a different phone, the same alias can be imported back and reused.
Export
In the example below, there is only one Private alias xv2xhhwa.

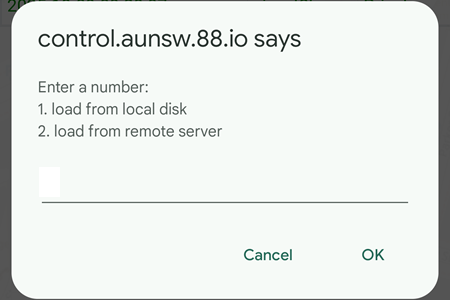

Select 1 or 2 to load the alias to be imported. For most users, the alias is normally exported to the local disk. Simply browse to the location where the file (ending with .alias) is exported, normally in the Download folder of the device and enter the password.
After the alias has been successfully imported, the imported alias will be displayed. In the example below, the imported alias is Private alias xv2xhhwa
The Encrypt button is used to encrypt the data entered in the Input Area box. In order to send an encrypted data, the sender needs to:
Get the Encrypt Key of the receiver and paste it by clicking on the Encrypt Public Key button.
Type the message in the Input Area box and click on the Encrypt button.
Copy the data shown in the Output Area and send it to the receiver.
Decrypt
The Decrypt button is to view the encrypted data received:
Copy the data received and paste it in the Input Area box.
Click on the Decrypt button
The decrypted data is displayed in the Output Area box.
Sign
This utility is to create a signature within the 88.io domain. Type the characters in the Input Box, click on the Sign button and the signature will be displayed in the Output Box.
In the example below, the signature is r8hZHZO9lUNUprOS1235_Bszx1Er3CfS9hjd4S7QZfzV07EosFEChmoAWIqiI-s_3ZemHTPlFoHNXJiH44vUCw
This utility is to check the signature created within the 88.io domain. Click on the Verify button, type or paste the signature in the pop-up window and click on the OK button.
In example below, the signature above which is r8hZHZO9lUNUprOS1235_Bszx1Er3CfS9hjd4S7QZfzV07EosFEChmoAWIqiI-s_3ZemHTPlFoHNXJiH44vUCw
is verified.
Copy the highlighted data from the Input Area or Output Area box to the clipboard.
Encrypt Public Key
The Encrypt Public Key button is for the sender to enter the public key of the receiver so the data sent to the receiver can be decrypted and viewed by the receiver.
Verify Public Key
The Verify Public Key contains the receiver's public key that can be shared to the sender which needs to be included by the sender before encrypting the message.
Hash
This utility is for transforming any given key or a string of characters into another value as in the example below.
The introduction takes you to Area Entity which explains in details about different types of entity.
Team Compute
Three sets of Team Compute are available and they all have identical submenus. Team cluster defines the Team Compute used and by default, Team A is the active cluster in use.
Unless there are issues, it is recommended to leave the default settings unchanged:
Distance Exceed: 0 metres
Time Exceed: 0 minutes
Error Below: 100 metres
Valid Duration: 5 minutes
Accuracy Above: 20 metres

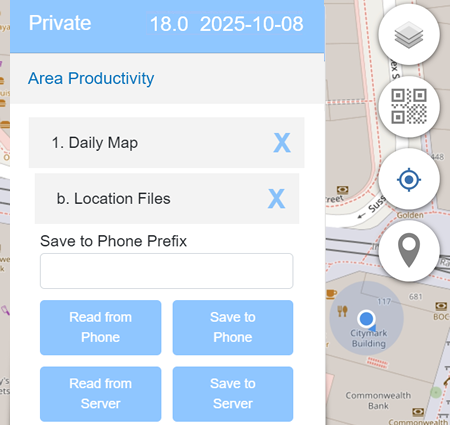

Location Files
Read from Phone
Import a .gpx file located in the mobile's local storage (normally located in the Download folder), so the location pins can be displayed on the map. In the example below, the .gpx file is imported from the device's local storage Download folder.
Save to Phone

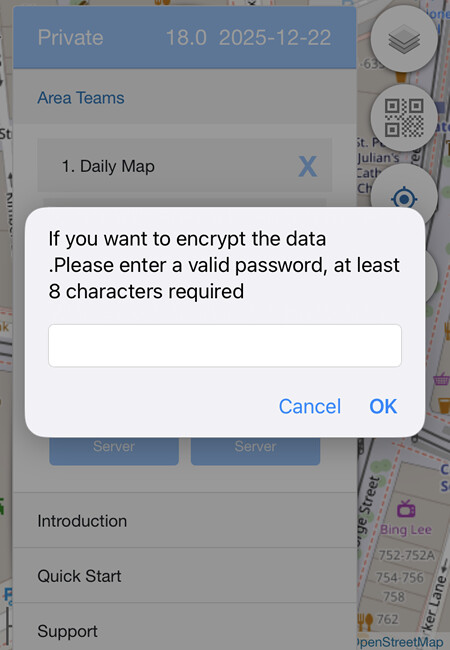

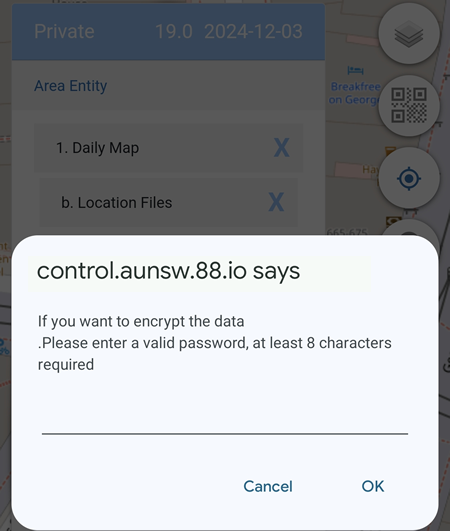

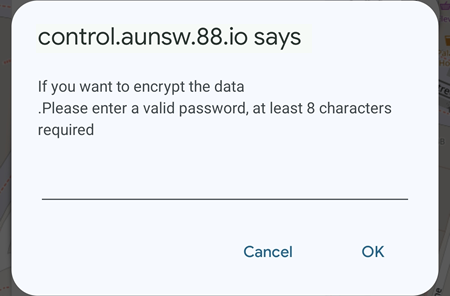

Export the current pins shown on the map to a .gpx file to be stored in the mobile's local storage (normally to the Download folder). There is an option to encrypt the data by entering a password.
The Barcode Application runs fully in a web browser (e.g. on Android and iOS phones) without any server backend and no interaction with any Mobile Phone App Stores.
The barcode is scanned and the resulting data stored data on the phone, ensuring maximum privacy.
1. Barcode Format
1D Barcode formats currently supported:
Codabar
Code 128
Code 39
Code 39 VIN - use for Vehicle Identification Number
Code 93
EAN-8
EAN-13
EAN Extended - use for serial books EAN13 + UPC5
Interleaved 2 of 5
Standard 2 of 5
UPC-A
UPC-E - compressed UPC-A
Default barcode format is EAN-13.
The older UPC-A format, still in common use, is automatically converted to EAN-13 by adding a zero "0" in front.
2. Barcode Size
For trouble free scanning, barcodes should follow the relevant standards e.g. EAN-13 barcodes should have the following:
Minimum Width 26mm
Minimum Height 19mm
Minimum Left and Right Clearance 3mm
Top and Bottom Clearance 3mm is preferred but not required.
3. Camera Capture
The phone's built in camera will be used to capture the barcode.
The barcode lines MUST be parallel to the SHORT side of the camera view.
Notice in the images below, whether it is in landscape view or in portrait view, the barcode's vertical lines must be aligned in the same direction with the shorter side of the phone's screen.
The barcode image should be Large and Clear (zoomed in and sharply focused)
If the phone camera performance is poor, the Barcode Client can alternatively accept images from other sources (e.g. SMS, Bluetooth, AirDrop etc.) uploaded from the phone's file system.
If the barcode is detected successfully, it will be shown as below
Console Encrypt enables users to encrypt and decrypt files easily by uploading from the mobile phone's local storage. To protect the files, a Password or a Public Key can be used.
Note: There is a limit of 1GB for a single file when using a mobile browser.
There are three available functions on Console Measure:
1. Pixel Measurement - button for Measuring Pixel
2. button for Counting Steps
3. Angle Measurement - Browser Compass
Pixel Measurement
The button allows users to upload photos and measure the number of pixels between 2 points.
Select the Choose file button and browse to the image location. Draw a line by selecting two different points and a green line will appear as shown in the image below.
1V2 means vertical reference of 2 metres high with 1x zoom level landscape.
V2L1 (landscape mode) = horizontal distance x vertical pixel / vertical height
Example: 2.70m x 2982px / 2 = 4025.70
horizontal distance = camera reference x vertical height / vertical pixel
Example: 4025.70 x 2 / 2982px = 2.70m
vertical height = horizontal distance x vertical pixel / camera reference
Example: 2.70m x 2982px / 4025.70 = 2.0m
Counting Steps
After the green button is pressed, it will change to orange and shows the number of steps detected. In the example below, the number of steps detected is 7.
Click on the button located at the bottom left hand corner.
Click on the button, then click on the button and enter the Name of the file that is going to be saved locally. In the example below, the name of the file is called localfile.
and the window below will be displayed. Click on the Export Alias button to continue.
button for Measuring Pixel
button for Counting Steps
to the map.
icon and click on New at the bottom left hand corner.
button.
button at the bottom right hand corner to exit.
button located at the bottom left hand corner.
button and enter the Name of the file that is going to be saved locally. In the example below, the name of the file is called localfile.
